Introduction to Mirus

Mirus is the software companion for the HarvestMaster GrainGage, used to calibrate the GrainGage and collect, view, and manage data. During harvest,  Mirus records the moisture, weight, and test weight for each plot. You can also add notes and attributes to support your research.

Mirus can be used on its own—without a GrainGage—to collect notes in a field without a GrainGage.

Understand Icons

Some icons are used throughout Mirus. The following table introduces these icons.

Common Mirus Icons
Icon	Description	Location
	Return to the Home screen.	Top left corner of title bar
	Shows that Mirus is not currently syncing changes to the cloud.	Title bar
	Shows that Mirus is currently syncing changes to the cloud.	Title bar
	Shows the name of the signed in account. Tap to see your account and licenses or sign out.	Title bar
	Opens the diagnostics box.	Home Setup > H2 GrainGage Harvest
	Save changes or updates. Close the box.	Various
	Close the box without saving.	Various
	Save selections and progress to the next screen.	Various
	Weight data collected by the sensor.	Various
	Moisture data collected by the sensor.	Various
	Test weight data collected by the sensor.	Various
	Exports the current settings to an XML file.	Setup > H2 GrainGage
	Import settings from a previously exported XML file.	Setup > H2 GrainGage

 See the Same Harvest View

The Harvest screen is customizable. Whether you prefer a certain combination of panes in the quad view or work better from the graph, spatial, or list view, Mirus will open the Harvest screen to the view that you last used.

Understand Plugins

Part of the flexibility of Mirus is the way that it is customized to your specific setup with plugin attachments and devices. In its simplest form with no plugins, Mirus collects data through its powerful note taking capabilities (see Appendix D: Take Notes with Mirus).  When you connect your plugin (H2 GrainGage), Mirus will know what data your GrainGage collects. You can add additional capability to your device with plugin attachments, such as Conditional Action for advanced automation and control (see Appendix E: Use the Conditional Action Plugin).

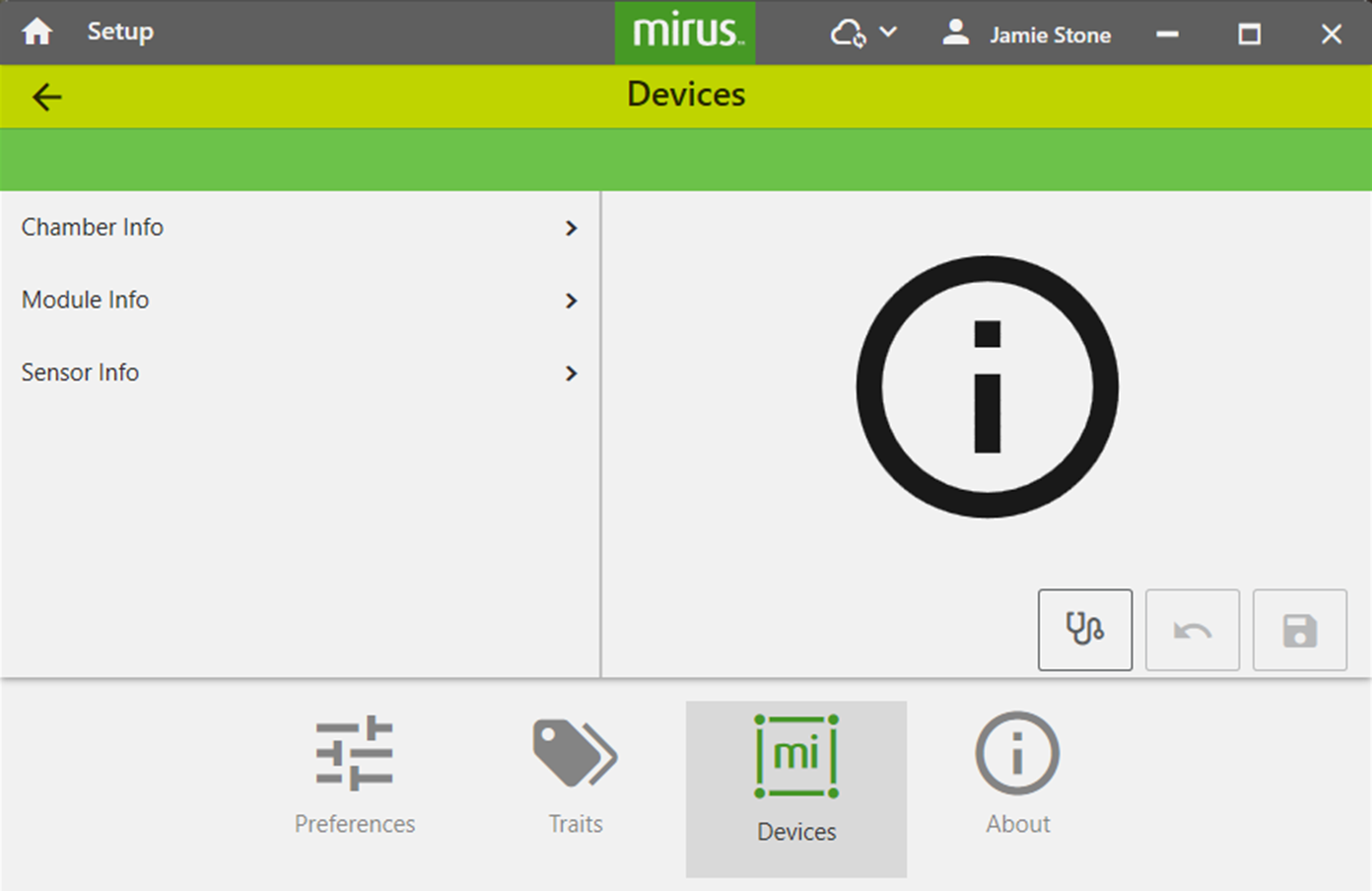

View GrainGage Info

The detailed snapshot of chamber, module, and sensor information available from the info section is a critical tool for monitoring the health and performance of your GrainGage system. You can see the status of key components. This information is essential for troubleshooting issues, verifying that all modules are properly connected, and ensuring sensors are functioning within expected parameters.

From Setup > H2 GrainGage,

1. Tap Info.

 Mirus opens the Info screen from which you can view Chamber, Module, and Sensor information for the GrainGage.

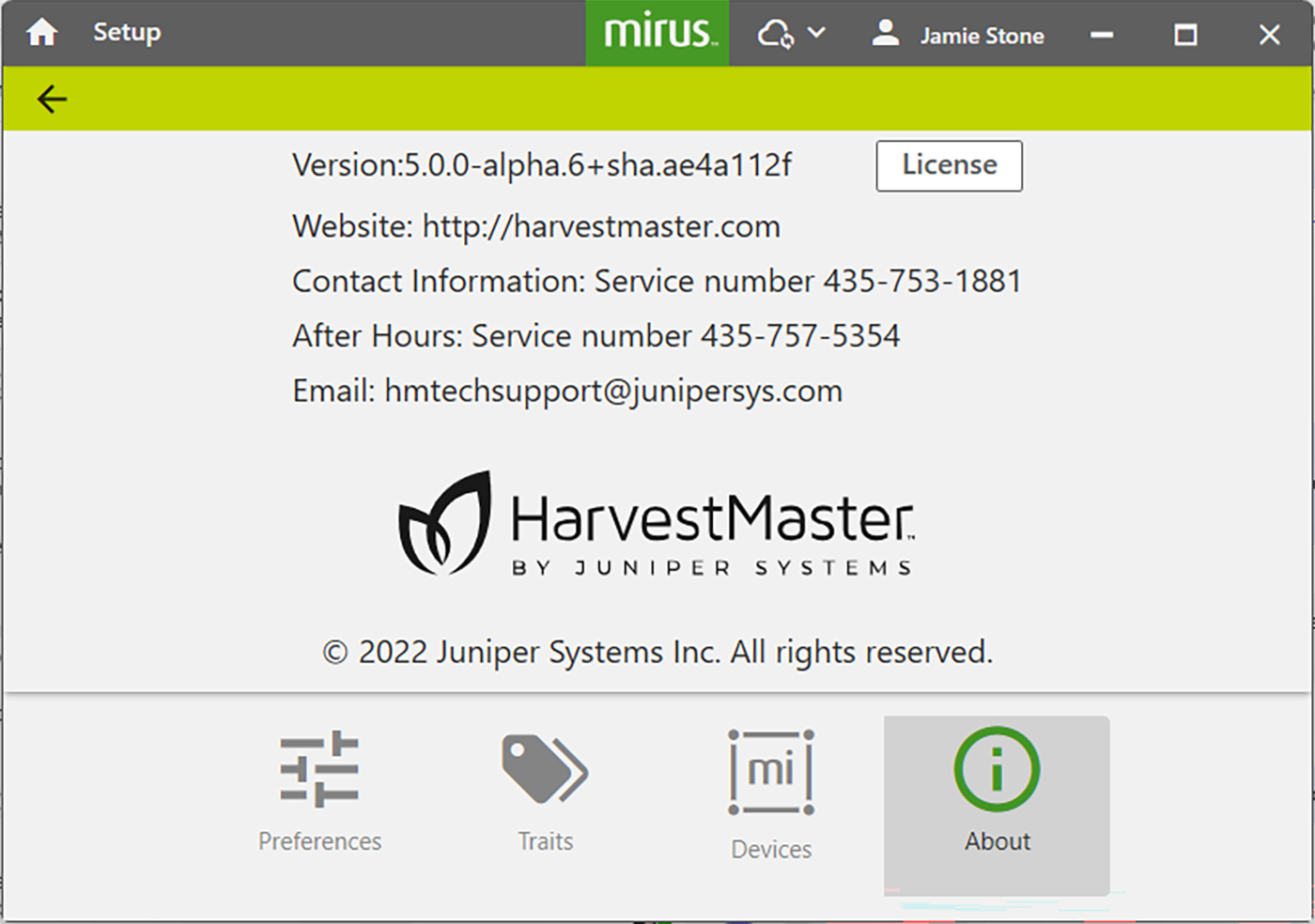

View Information About Mirus

Together, the information available from the Setup About tab will help keep your system current, compliant, and fully supported for optimal performance.

The Mirus version number helps confirm compatibility with your GrainGage hardware and plugins. You will need it when applying updates or troubleshooting issues.

License information verifies that your software is properly activated and compliant, preventing interruptions during harvest.

The website link, Mirus Harvest Software, provides quick access to official resources, including documentation, software downloads, and updates.

The contact information ensures you can reach technical support promptly when assistance is needed.

To find the version number, license information, website, and contact information from Setup > H2 GrainGage:

1. Tap About.

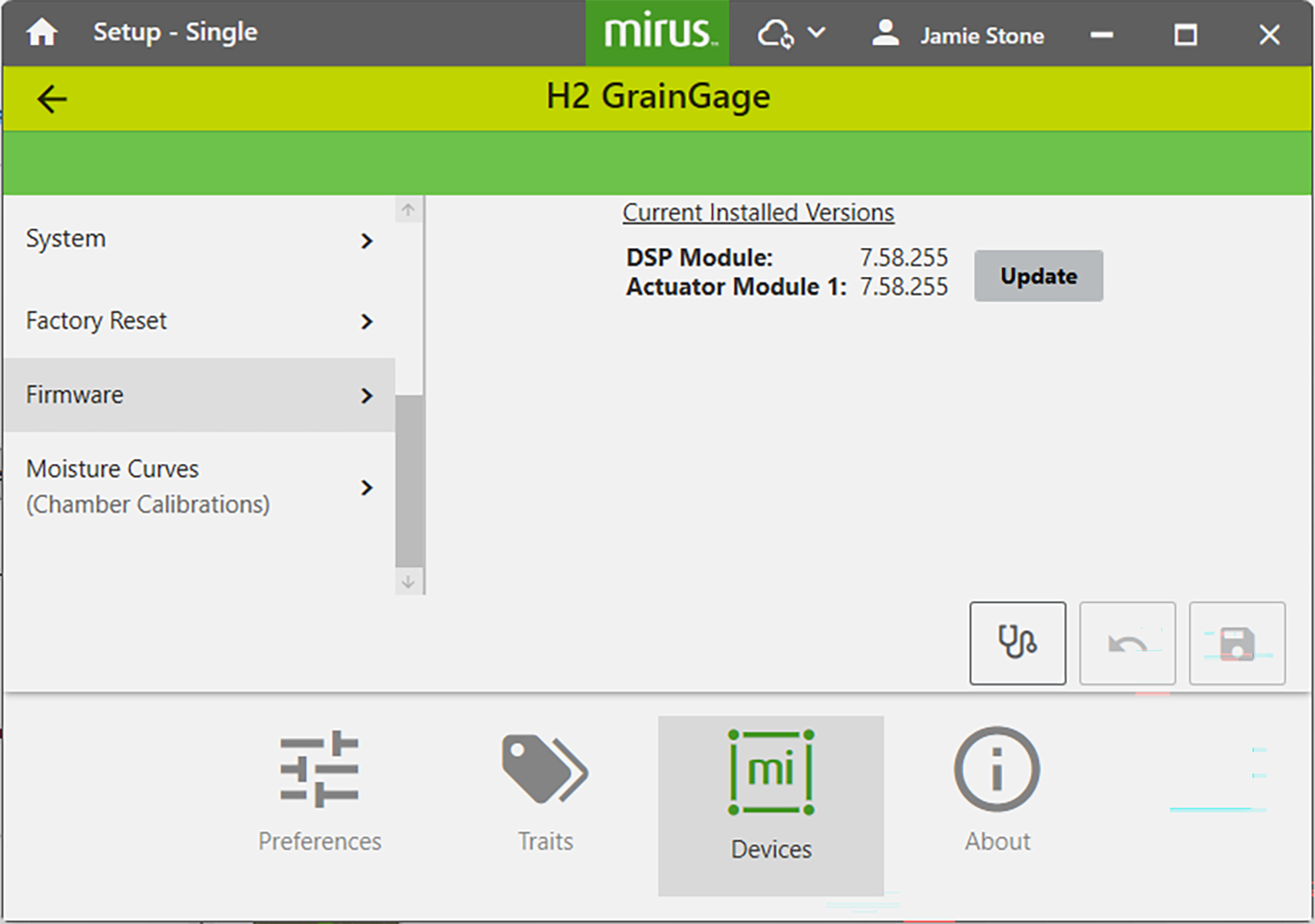

Update the GrainGage Firmware

You do not typically need to update the firmware. It is automatically updated when Mirus is installed. However, if you need to update, it is easy.  Reasons to update firmware could include a critical patch, new features, or enhancements that improve performance, expand compatibility, or add functionality to your GrainGage system

From Setup > H2 GrainGage > Firmware, tap Update.
