H2 Stationary GrainGage

H2 Stationary GrainGage

Accessible
Data Collection for Hand Harvesting and Mobile Operations

The H2 Stationary was designed as an affordable, entry-level option for acquiring accurate data measurements off-combine. Leveraging “H2 Technology” used in the H2 Classic, this simplified GrainGage is ideal for hand harvesters requiring a mobile option for measuring grain weight and moisture. Accompanied by a 12-volt power source and portable thresher, the lightweight H2 Stationary GrainGage is ideal for quick mobility and data repeatability.

Contact HarvestMaster today to take advantage of all the H2 Stationary has to offer.

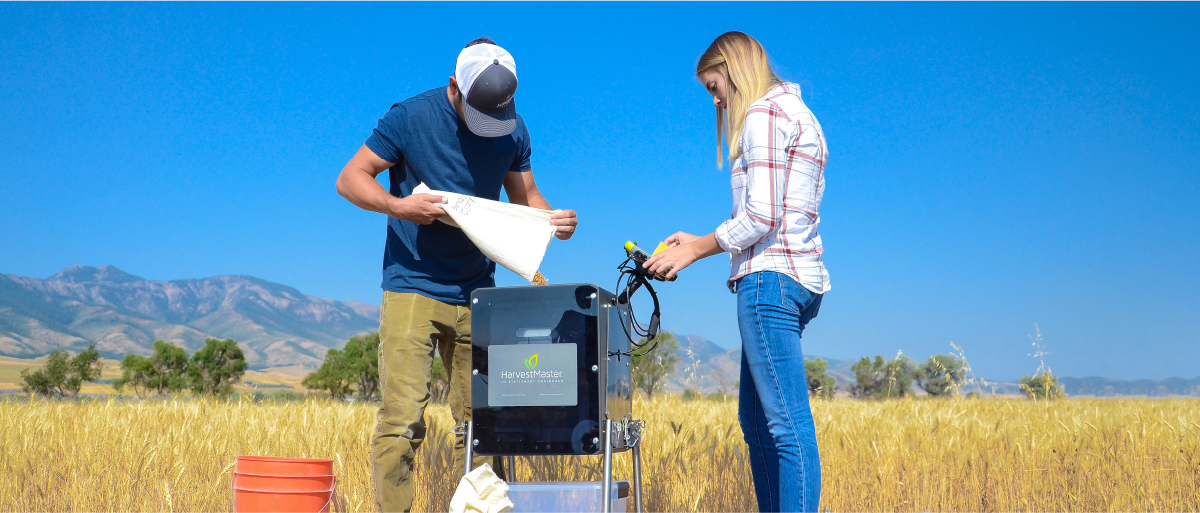

H2 Stationary Pouring Grain
Exceptional Data Accuracy
Reliable Data Consistency

The H2 Stationary allows hand harvesters to collect field data efficiently, while eliminating errors and data variance caused by manual processing/scales. Built to enhance data accuracy and provide repeatability, the H2 Stationary improves both workflow and accuracy.

Research Meets Efficiency
Quick And Easy Portability

Designed for quick and easy setup, the H2 Stationary GrainGage allows users to collect plot data virtually anywhere. Its retractable legs and lightweight design are a few of the features that make its quick mobility possible.

Customers wishing to collect measurements on a research combine, please check out HarvesMaster’s other H2 GrainGage options here.

Mirus™ Software – Easy-To-Use, Yet Powerful
Track Samples With Mirus™ Software

Maintain data quality using HarvestMaster’s Mirus™ software. Working with the Mesa 2 Rugged Tablet’s built-in barcode scanner to track each sample, Mirus ensures both data accuracy and quality from sample-to-sample. Like all H2 GrainGage systems, the H2 Stationary has been optimized for use with HarvestMaster’s Mirus software. This powerful, yet easy-to-use, tool gives researchers the benefit of monitoring plot harvest data as it’s collected.

Features At-A-Glance
Features At-A-Glance
  • Easy portability
  • Improved accuracy
  • Low cost
  • Simple to use
  • Barcode scanning organization
Specifications
Specifications
  • Physical
  • 65 lbs. with calibration weight
  • Cabinet Dimensions: 19”H x 15.25”W x 18”D (48cmH x 39cmW x 46cmD)
  • Operating Dimensions: 34.5”H x 17.6”W x 22.7”D (88cmH x 45cmW x 58cmD)
  • Compactable legs for easy transportation and setup
  • Measurement capability:
  • Weight: +/- 0.1 lbs (+/- 45 g)
  • Moisture: +/- 1.0% for 0% to 40% moisture
  • Operates on 10v - 18v DC Source
  • Operating temperature 32F to 122F (0C to 50C)
  • Maximum sample for moisture 2lbs. (0.9Kg)
  • Maximum sample capacity 30 lbs. (15kg)

Note: System accuracy dependent upon proper calibration and configuration per HarvestMaster recommendations.
